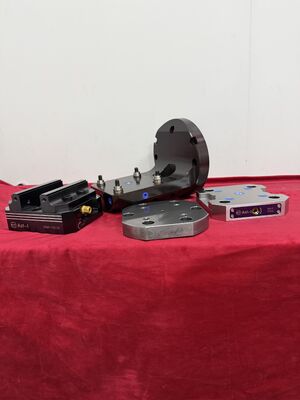

AST SK96-205 Zero Point Fixture
Revolutionary clamping solution designed to enhance machining efficiency and precision for 4-axis and 5-axis applications, reducing cycle times by up to 80% while maintaining exceptional accuracy.
Product Overview
The Zero Point Fixture represents a breakthrough in workholding technology, engineered to meet the demanding requirements of modern manufacturing environments. This innovative clamping system significantly reduces setup times while delivering exceptional precision and repeatability.
Key Benefits
- Cycle time reduction up to 80%
- Quick-change capability for fast workpiece swaps
- Exceptional precision with 0.01mm accuracy
- Compatible with 3, 4, and 5-axis CNC machines
- Long service life of 1-5 years
- Includes 4 pull studs for secure clamping
Technical Specifications
| Model Number |
SK96-205 |
| Dimensions |
208 × 106 × 25mm |
| Accuracy |
0.01mm |
| Weight Range |
5-20 kg (varies by model) |
| Clamping Type |
Single clamping system |
| Compatibility |
3, 4, and 5-axis CNC machining centers |
Applications
Ideal for precision milling and machining centers where cycle time reduction is critical. Perfect for aerospace, automotive, and mold making industries requiring high accuracy and quick setup times.
- High-volume manufacturing scenarios
- Automated and semi-automated production lines
- Prototype development to full-scale production runs
- Complex multi-axis CNC machining operations
Customization Options
OEM support available for custom integration into your specific machining environment. The fixture can be tailored to meet unique requirements for 3-axis vise solutions or complex CNC setups.
Support & Services
Comprehensive technical support available for setup, troubleshooting, and customization. Services include calibration, repair, replacement parts, and software updates to ensure optimal performance throughout the fixture's lifespan.
Packaging & Shipping
Each unit is securely packaged in custom-fitted foam within double-walled corrugated cardboard boxes. Multiple shipping options available including standard ground, expedited, and freight services with full tracking.
Frequently Asked Questions
What is the AST Zero Point Fixture Model SK96-205 used for?
The fixture quickly and accurately positions workpieces on machining centers, improving setup times and ensuring repeatability during manufacturing processes.
How does the SK96-205 improve machining efficiency?
By providing a precise and repeatable clamping system that significantly reduces machine setup time, allowing for faster changeovers and increased productivity.
Is the AST SK96-205 compatible with various machine types?
Yes, it's designed to be versatile and compatible with a wide range of CNC machines and machining centers for diverse manufacturing environments.
What materials is the SK96-205 made from?
Constructed from high-quality, durable materials to ensure long-lasting performance and resistance to wear in industrial settings.
How do I install the AST SK96-205 on my machine?
Installation involves mounting the fixture using recommended bolts and aligning according to manufacturer's instructions for optimal precision and stability.
